SaVoir V5.4.1

New features
1

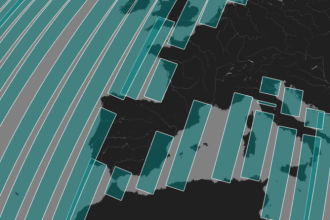

New Land constraint allows to limit sensor operation on land or ocean only, and establish minimum and maximum land cover ratios.

2

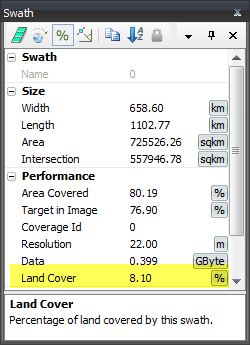

New Land cover percent parameter calculated for every swath as the ratio between land area covered and total swath area. The parameter is also exported in Excel.

3

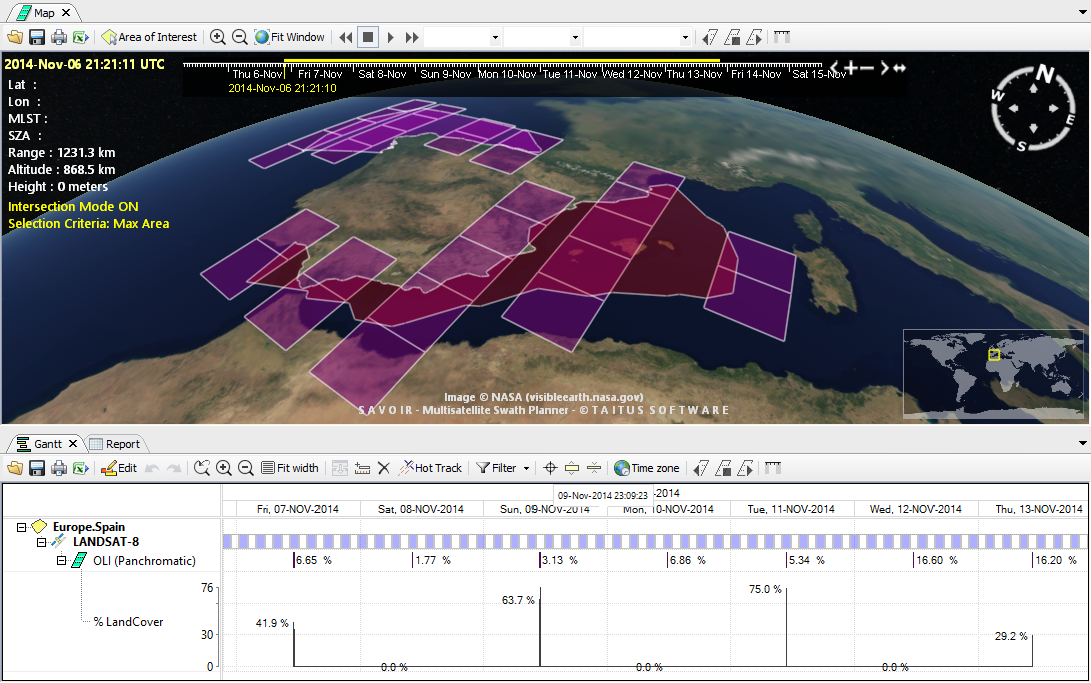

New Land % plot on Gantt display to show the % land covered by a swath timeline.

4

New sensor wizard functions to support creation of enumerative steering beams (like Cosmo-Skymed or Radarsat).

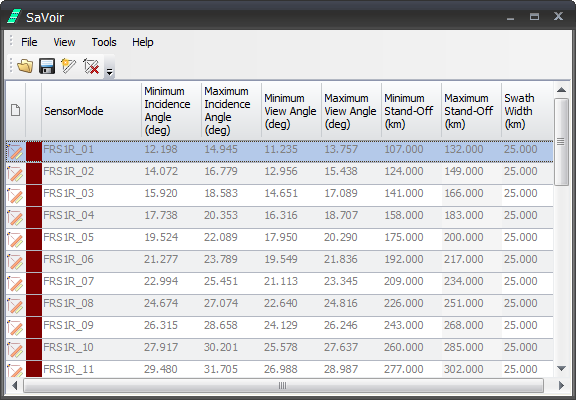

In the step for defining the sensor geometry you now can define a prefix for all beams, the number of beams, and the swath width. Then clicking on Edit Modes ... will open the table with all the resulting beams assuming a uniform distribution within the defined field of regard. The table is interactive. Parameter values for incidence angles, view angles or ground distances can be edited line by line if needed or exported to excel, edited, and re imported back.

Fixed source
1 Fixed editing of names in region property grid. It created a duplicate region the tree root when editing a multipart leaf or a folder leaf
2 Fixed crash when editing style properties with slider, like e.g. transparency
3 Recalc ... dialog in trajectory wizard allows now to edit times manually via edit box
4 Fixed Area of Interest name dialog. Editing the name manually did not change the region name
5 Fixed spotlight mode with trajectory regions. Before the spotlight centroid did not coincide with the position of the moving target.
Configuration updates
1 Added BeiDou constellation
2

RCM sensors have been updated with enumerative beams, and sensor geometry has been updated. RCM Spotlight mode has been added.

3 RISAT-1, HJ-1C, NOVASAR-S and ALOS-2 modes and beam geometries have been updated.
4 TerraSAR-X and TanDEM-X Wide ScanSar modes have been renamed with WS instead of WC.
5 Added SPAISE2 instrument to ALOS-2 (AIS instrument)
6 Added ALOS-2 with SPAISE2 (AIS instrument) to S-AIS satellites
