SaVoir V4.5.1

New features
1

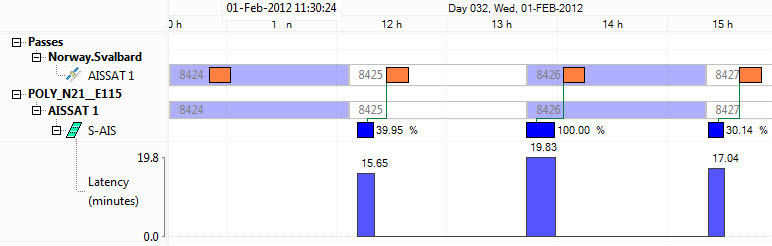

New Latency profiles.With the Ground Station visibilities module it is now possible to calculate the latency of acquisitions with respect to the first downlink opportunity, and plot them on the Gantt view.

Follow these steps:

(1) Calculate a timeline of acquisitions with respect to sensors and AOI selection

(2) Select one or more Antennas to do data downlink. Calculate the timeline of antenna to satellites visibilities.

(3) On the Gantt view, types bar, right click over the selected sensor timeline and select "Latency" menu. A plot of the downlink latencies will be displayed.
2

Mercator maps are now modified to close the singularity hole seen before in both poles

Before Now
Fixed source
1 Duration Constrain: fixed the rebuilding of swaths after optimization with steerable sensors
2 Fixed usage of Swath Files for sensor geometry definition (Envisat case)
3

Fixed Cumulative Data Size an Data Size profile creation on the Gantt View.

SaVoir crashed if the sensor bit rate was zero.
4

Fixed orbit propagator handling of Cartesian elements.

If the z coordinate was equal to zero, the propagator would make a wrong reading of the orbit elements locating the satellite at the opposite side of its orbit.
Configuration updates
1 New Suomi NPP satellite in Optical Satellites collection
