Look Angle



The Look Angle is the angle between the satellite vector and the satellite nadir vector measured at the observation point.

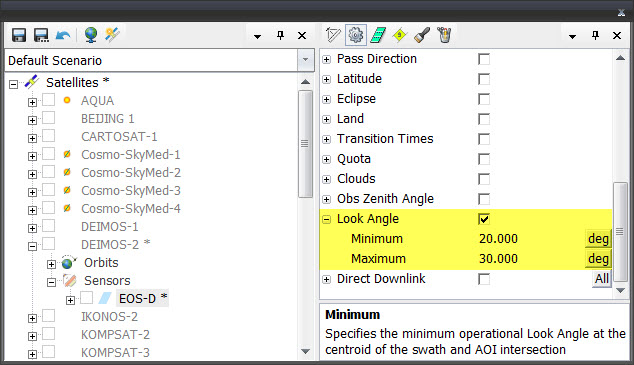

When the Look Angle constraint is active any swath with Look Angle outside of the defined minimum and maximum values will be discarded.
