Latitude

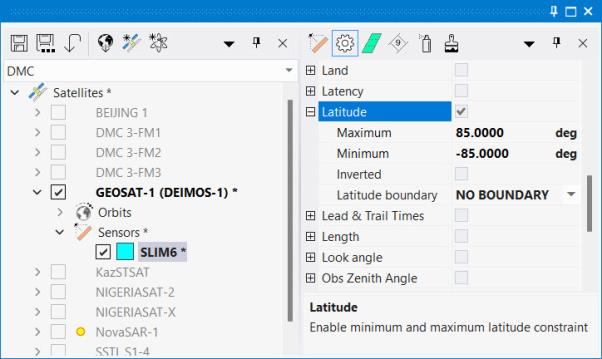

Define minimum and maximum latitude limits. Swaths will be cut to ensure that the swath latitude remains within limits.

No Constraint	Maximum Latitude= 58 deg Minimum Latitude= -22 deg

• Maximum: Maximum latitude allowed. The constraint will be applied north of this latitude.

• Minimum: Minimum latitude allowed. The constraint will be applied south of this latitude.

• Inverted: Will invert the constraint action to allow sensing north or south of the defined boundaries

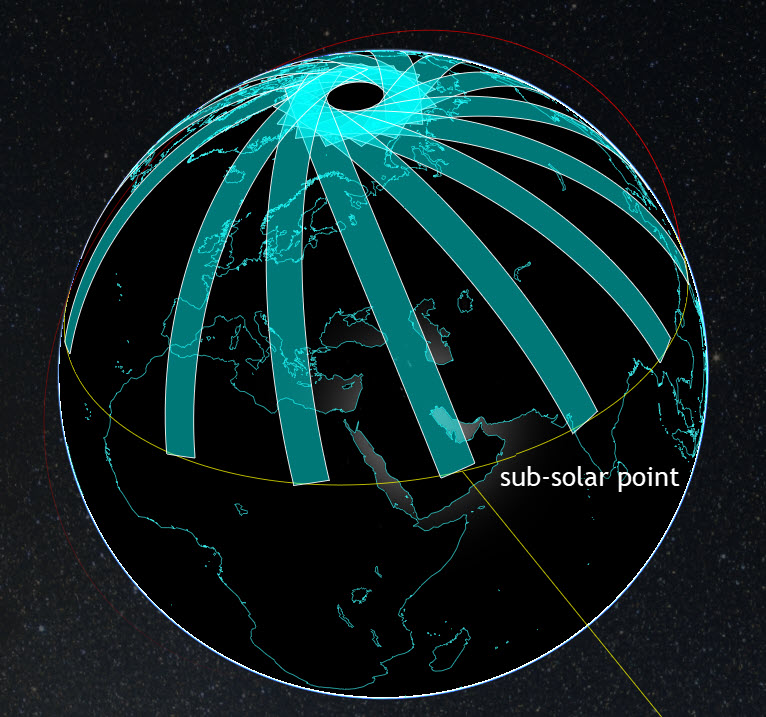

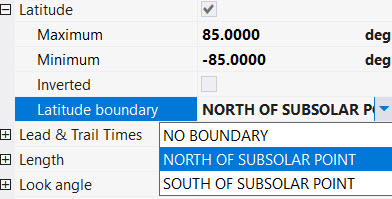

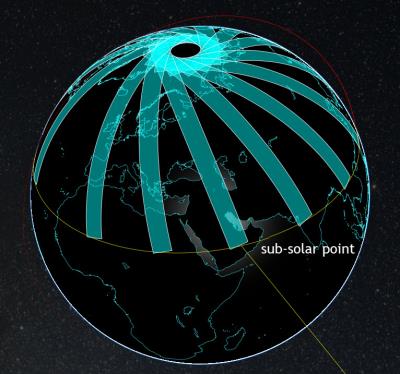

• Latitude boundary: Use the sub-solar point to define an additional boundary, north or south of it.
