Elevation

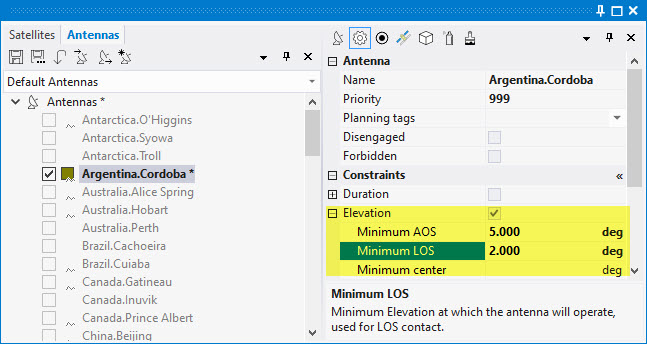

The Elevation Constraint allows to define minimum elevation angles for a given antenna for the purpose of pass scheduling

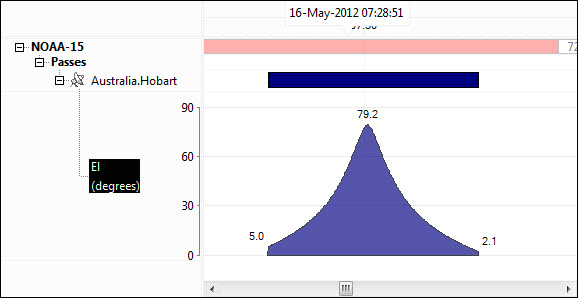

- Minimum AOS: Minimum elevation at which AOS will be done. A pass will not start below this elevation.
- Minimum LOS: Minimum elevation at LOS. A pass will not finish below this elevation
- Minimum Center: Minimum elevation at the center of the pass. If the elevation at pass center is below this value the pass will not be scheduled.
