Direct Downlink
Direct Downlink constraint will trim all swaths generated with this sensor to be compatible with direct downlink on the selected antennas. In other words, the sensing start and stop times will be selected so that sensing occur simultaneously with antenna visibility.

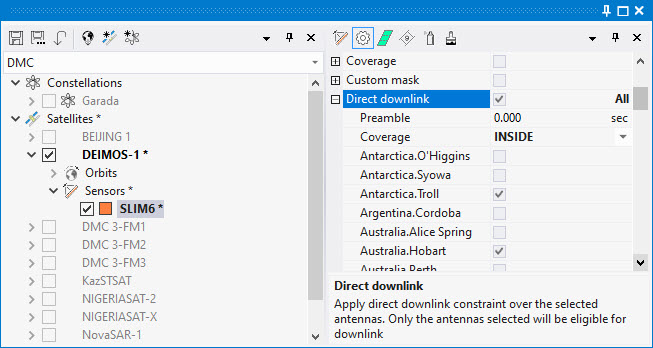

The following parameters can be selected:
- Preamble: A time margin to be added at the start and stop of station visibility
- Coverage: Plan swath acquisition only when INSIDE antenna visibility, or OUTSIDE antenna visibility

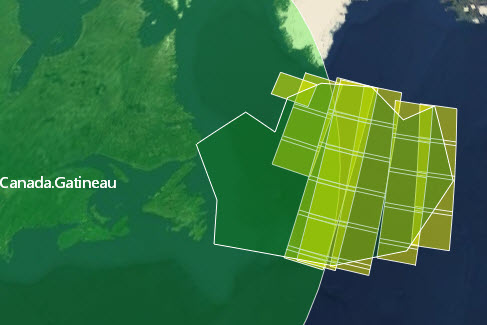

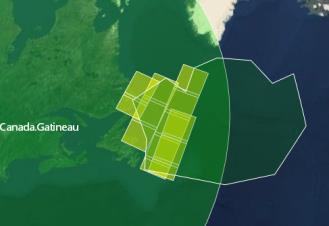

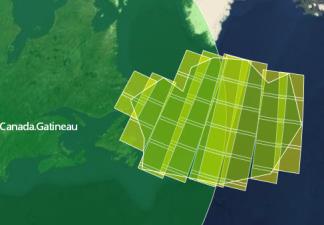

| Direct Downlink OFF | Direct Downlink ON, Coverage INSIDE | Direct Downlink ON, Coverage OUTSIDE |
|---|---|---|
|
|
|
See the following video to understand its operation.
