Same Ground Track constellation

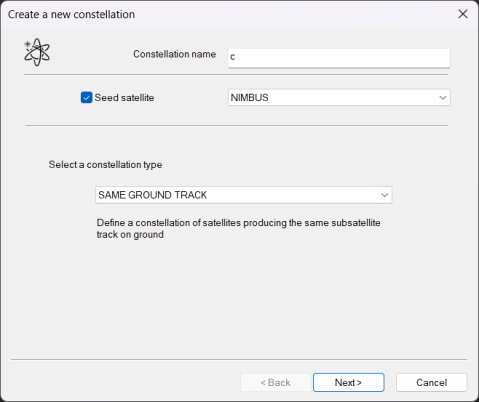

Select the SAME GROUN TRACK option.

Select a Seed satellite if necessary from the satellites in the current scenario

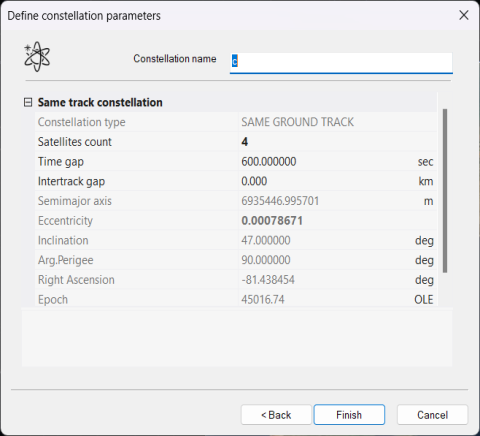

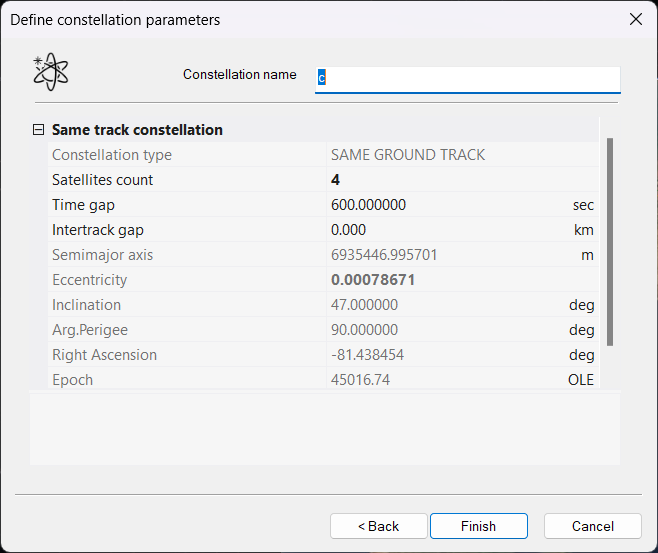

- Define the number of satellites in the constellation

- Define the time gap between adjacent satellites

- Optionally define an inter-track gap distance. Normally leave this parameters to zero, to enforce that all satellites pass over the same sub-satellite track. The inter-track gap allows to separate tracks by a given distance, measured at the equator.
