SaVoir V5.2.0

New features
1

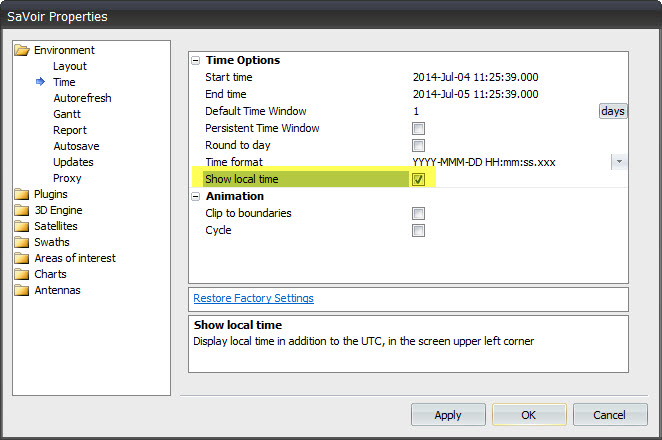

New feature allows to display local time on the top left corner. Go to Edit / Properties / Environment / Time to activate it.



2

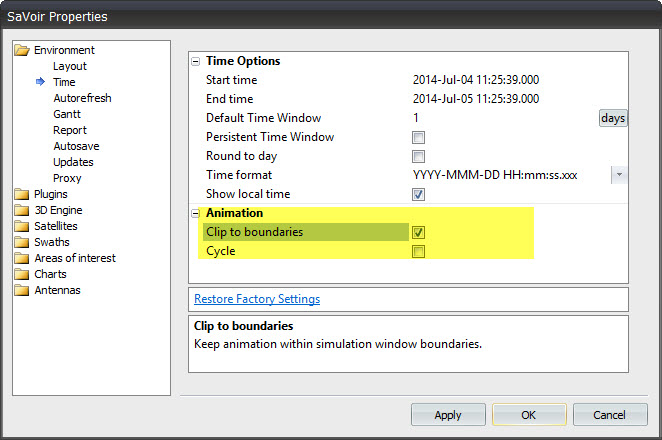

New animation features:

  • Clip to boundaries: Animation will stop at the end of the simulation time window.
  • Cycle: Animation will run continuously within the simulation time window, restarting to the beginning when the end of window is reached.

Go to Edit / Properties / Environment / Time to activate it.



3

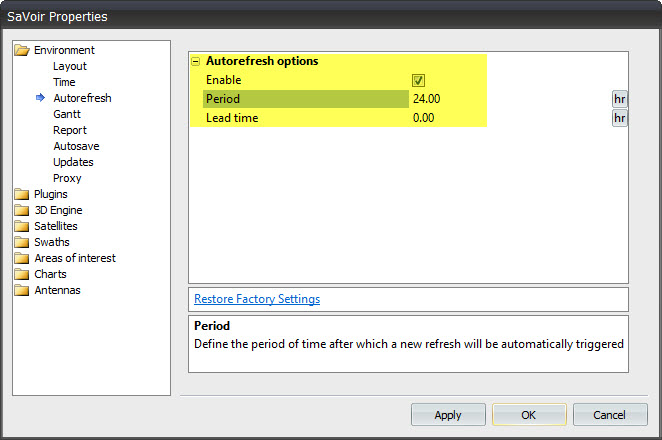

Improved Auto-refresh functionality. Now it is possible to configure a refresh period, and a lead time for the start of the new simulation window.

Go to Edit / Properties / Environment / Autorefreshto activate it.



4

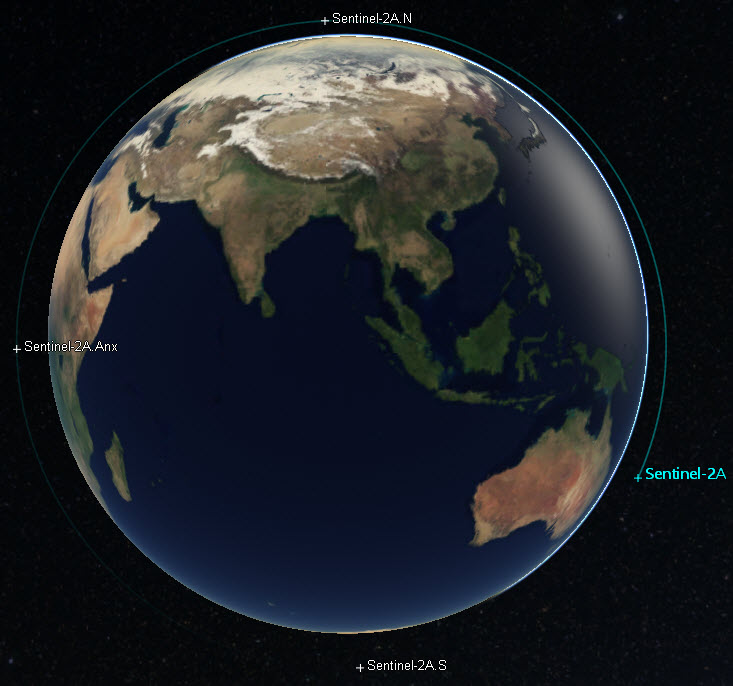

New feature allows better control of what orbit events should be visualized.

New events added: North and South crossings, Umbra / Penumbra points of entry and exit



5

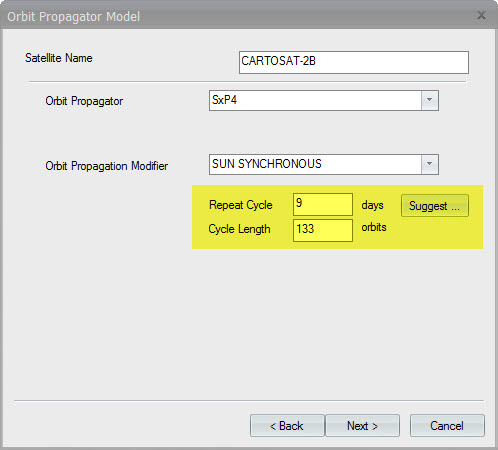

Satellite orbit wizard improved to provide alternative combinations of Sun Synchronous Repeat Cycle and Cycle lengths fitting a given orbit.



Fixed source
1 Fixed crash in Outages view, when right click an outage event.
2 Fixed problem with AOI names in AOI wizard. When creating a new AOI via the map, calling the wizard from the "AOI name" dialog and changing the name of the AOI, two identical AOIs were created.
3

Fixed exception when creating a new folder in the Areas tree.

4

Fixed sensor duration "Max Frames" constraint, which in certain cases of floating frame configuration did not select the proper frame alignment, resulting in non-optimal frame selection.

5 Fixed crash on Remove License dialog when writing text in the red edit control
Configuration updates
1 Removed several FLOCK 1 satellites due to decay.
2 Modified RADARSAT-2 to add new Extra fine mode
3 New 3D model EGYPTSAT-2
4 Added ALOS-2 orbit after recent launch
5 Added Flock-1C constellation satellites after recent launch (10 new satellites)
6 Default Satellites has been reorganized, adding Pleiades, SPOT 6/7, and Deimos-2 and removing less used satellites.
7 Added Sentinel-5p
8

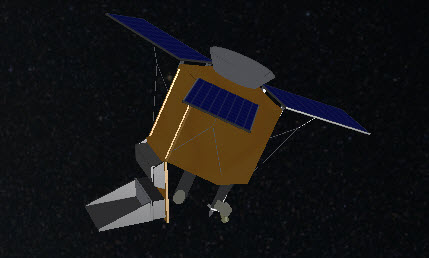

Added 3D model for Sentinel-5p

9 Added SPOT-7 orbits with TLEs following the recent launch
10 Updated DEIMOS-2 and KAZEOSAT-2 orbits with TLEs following their recent launch
11 Added RESURS-P2
12 Added MIRANDA (VRSS-1) satellite
13 Added AISSat-1 after its recent launch
14 Added APRICESAT-9 & 10 following their recent launch
15 Fixed PAZ Spotlight mode to align to TerraSAR-X configuration
16 Added ALOS-2 orbit after recent launch
17

Added GCOM-W1

Added AMSR-E sensor to AQUA
