Swath Depth Of Coverage

Depth of coverage is defined as the number of swath overlaps for any given geographical location.

SaVoir will render the depth of coverage with a color scale as in the pictures below. The function can be activated from Tools / Depth of Coverage menu

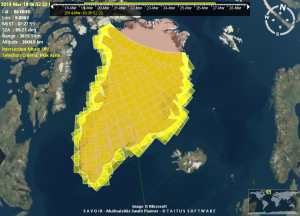

Examples of Cosmo-Skymed ScanSAR swaths over Greenland:

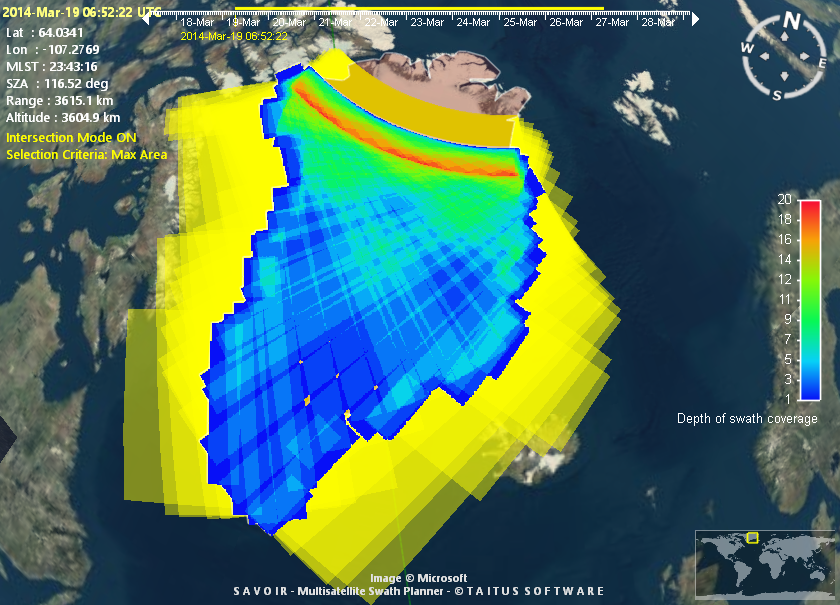

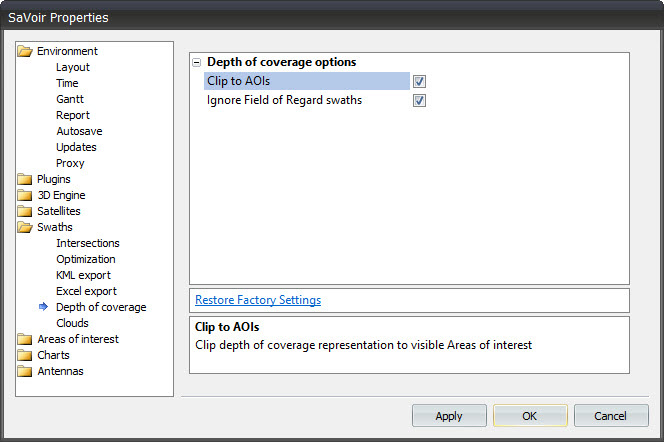

Clip to AOIs = true, Ignore Field of Regard swaths = true -> options selectable in Edit / Properties / Swaths / Depth of coverage

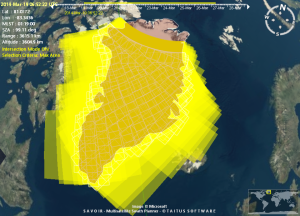

Clip to AOIs = true, Ignore Field of Regard swaths = false -> options selectable in Edit / Properties / Swaths / Depth of coverage

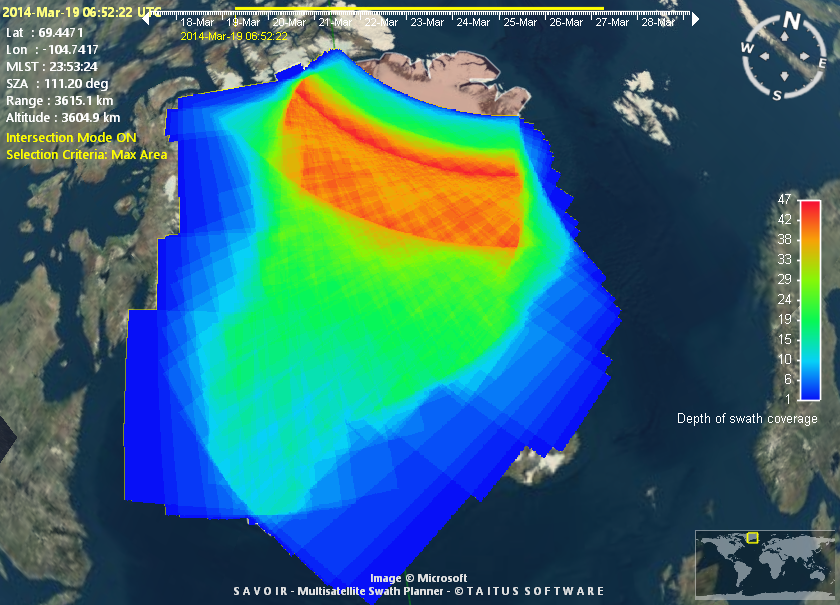

Clip to AOIs = false, Ignore Field of Regard swaths = false -> options selectable in Edit / Properties / Swaths / Depth of coverage
